Payment & Shipping Terms:
|Products:||Hastelloy Nickel Alloy Fittings||Connection:||Butt-Welding|
|Package:||Plywood Box Or Pallet||Application:||Pharmacy,beer,food,dairy,brewing, Beverage, Water Treatment,chemical|
2.4819 hastelloy c276 pipe fittings,
NiMo16Cr15W hastelloy c276 pipe fittings,
NiMo16Cr15W stainless steel weld fittings

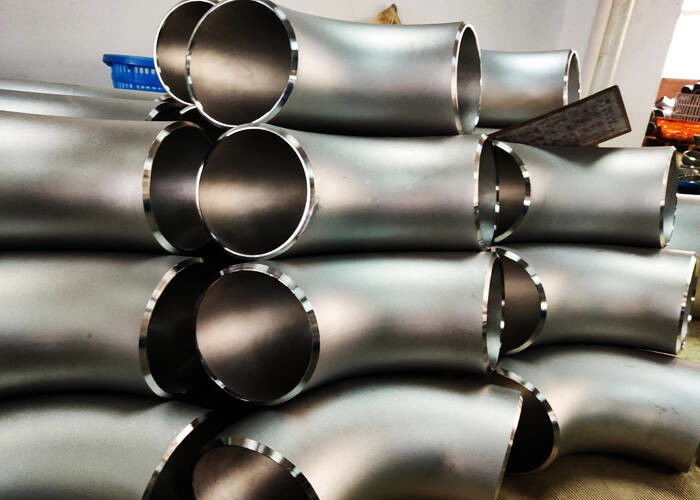

Hastelloy C276/NiMo16Cr15W/2.4819 Stainless Steel Pipe Fittings Nickel Alloy
"zheheng steel" produces and supply Wrought Steel Butt-Welding Hastelloy C276/NiMo16Cr15W/2.4819 Stainless Steel Pipe Fittings., Non-standard pipe fittings are also produced according to customer requirements. The company strictly implements ASTM B575/ASME SB-575,ASTM B574/ASME SB-574,ASTM B622/ASME SB-622,ASTM B619/ASME SB-619,ASTM B366/ASME SB-366,ASTM B564/ASME SB-564 standard ,
|Product name:||Hastelloy C-276 / UNS N10276|
|International Common Name:||Hastelloy, C-276, INCONEL Alloy C-276, HC-276, Hastelloy C-276, UNS N10276, W.-Nr. 2.4819, ATI C-276, Nicrofer 5716 hMoW-Alloy C-276, NAS NW276|
|Executive Standards:||ASTM B575 / ASME SB-575, ASTM B574 / ASME SB-574, ASTM B622 / ASME SB-622, ASTM B619 / ASME SB-619, ASTM B366 / ASME SB-366, ASTM B564 / ASME SB-564|
|Main components:||carbon (C) ≤0.01, manganese (Mn) ≤1.00, nickel (Ni) ≥57, silicon (Si) ≤0.08 phosphorus (P) ≤0.04, sulfur (S) ≤0.03, chromium (Cr) 14.5 ～ 16.5, iron (Fe) 4.0 to 7.0, molybdenum (Mo) 15.0 to 17.0, tungsten (W) 3.0 to 4.5, cobalt (Co)|
|Physical properties:||C-276 density: 8.9g / cm3, melting point: 1325-1370 ℃, magnetic: no|
|Heat treatment:||Insulation between 1150-1175 ℃ for 1-2 hours, rapid air cooling or water cooling.|
|Mechanical properties:||tensile strength: σb≥690Mpa, yield strength σb≥275Mpa: elongation: δ≥40%, hardness ≤100 (HRB)|
Inspection and Test Procedure
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
1. Are you a trading company or a manufacturer?
Manufacturer and trading.
2. What are your main products?
All kinds of elbows, tees, caps, flanges, and steel pipes, etc with different stainless steel,nickel alloy materials.
3. Do you provide free samples?
We'd like to provide samples for your confirm, but we don't pay the cost of freight.
4. Why should I choose you?
* Contact us with your detailed inquiry, you will be replied within 6 hours.
* You are promised to obtain the best quality, price, and service.
* Wide excellent experiences with after-sale service.
* Every process will be checked by responsible QC which ensures every product's quality.
Contact Person: sales
