| Technics: | Forged | Connection: | Welding |
|---|---|---|---|
| Process: | Forging+machining+heating Treatment | Pressure: | PN16 ,PN40 ,PN10 |
| Model NumberSlip On: | 1.4301/1.4307 1.4541 | Product Name: | Slip On Flange |
| Highlight: | 1.4541 Slip On Flange,PN40 Slip On Flange,ASTM A182 slip on forged steel flange |
||

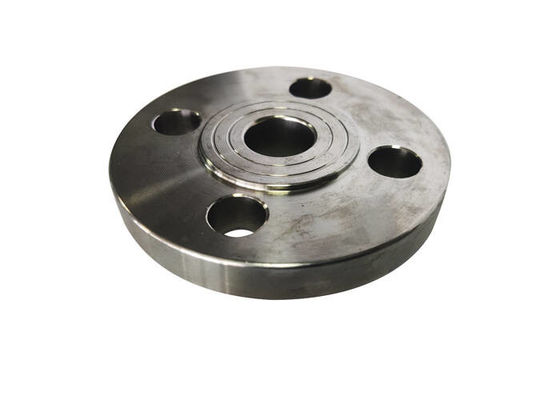

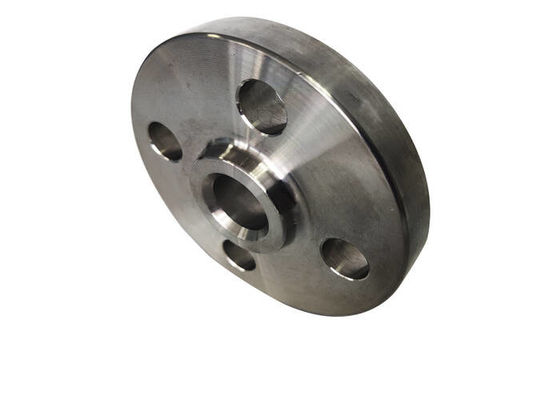

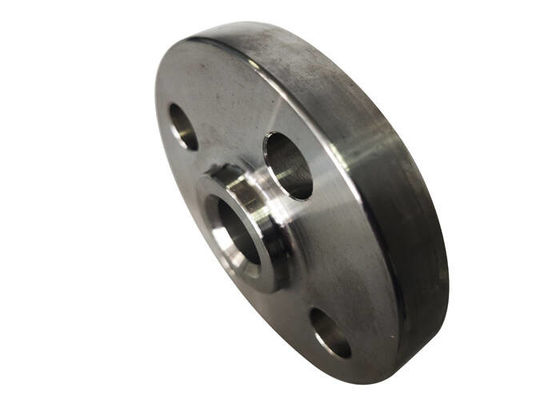

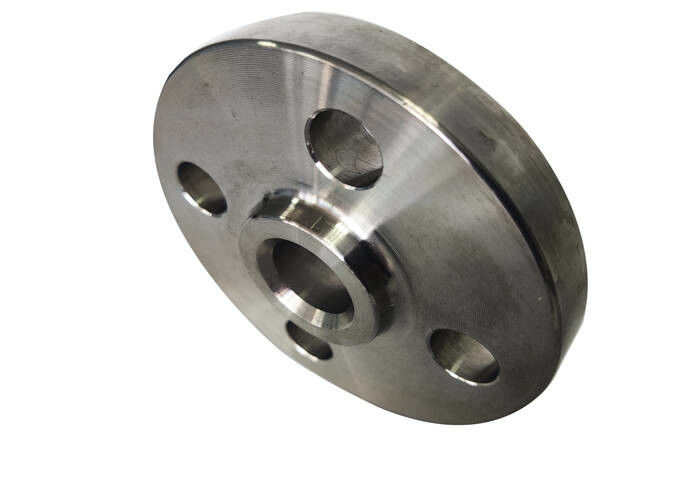

1.4301/1.4307 1.4541 stainless steel slip on flange RF forged (SO) PN16 PN40 EN1092-1
slip on flange (SO)is a flange with neck is a flange of flat welded steel pipe with neck.It is a flange that extends steel pipe and pi
pe fittingsinto flange and connects with equipment or pipeline through fillet weld.so flange is also a flange that extends
steel pipe and pipefittings into flange and connects equipment or pipeline through fillet weld like plate flange.
There are three kinds of forging flange sealing surfaces:
a,flat sealing surface is suitable for the environment whcih pressure is not high and media is non-toxic .
b,concave sealing surface is suitbale for the environment which pressure is slightly higher.
c,tongue and groove sealing surface is suitable for the environment which is flammable, explosive, and media is toxic, pressure is slightly high.
Products Range:
| Stainless Steel | ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti | |
| Alloy Steel | ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc. | |
| Standard | ANSI B16.5 | Class 150 Flanges-Class 2500 Flanges |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar 63Bar | |
| JIS | 5K Flanges-30K Flanges | |
| EN1092-1 | PN 10 .PN 16 ,PN 25 ,PN40 ,PN60 ,PN100 | |
| Type | 1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5.Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc. | |
| Connection Type | Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc | |
| Size | 1/2"-100",SCH5S-SCH160S,XS,XXS,STD | |
| Heat Treatment | Normalizing, Annealing, Quenching Tempering | |
| Applications | Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc. | |
Detailed introduction of Stainless steel pipe slip on flange
Flange is the parts which connects two pipe ends, flange connection is defined by the flange, gasket and bolt three are connected as a group of combined sealing structure of the detachable connection. The gasket is added between the two flanges and then fastened by bolts. Different pressure flange, thickness is different, and the bolts they use are different, when pump and valve connect with pipe, the parts of the equipment are also made of the corresponding flange shape, also known as flange connection, usually closured bolted connection parts are also known as flanges, such as the connection of ventilation pipe, this kind of parts can be called "flange type part", but this connection is only part of a device, such as the connection between flange and water pump, it's not inapposite to call water pump as flange type parts,but relative small valve,it can be called as flange type parts .
Flange connection is connected of a pair of flanges, a gasket and some bolts and nuts, gasket is put among the two sealing surface of flanges, after fasten the bolts and nuts, when the specific pressure on the surface of gasket reach a certain value, gasket deforms, and fill the uneven place of sealing surface, make the connection tight without leakage.
