Product Details:
Payment & Shipping Terms:
|
| Technics: | 1.5D .1.0D | Thickness: | Sch10s ,SCH40S .SCH80S ,SCH160 |
|---|---|---|---|
| Angle: | 90 Degree | Type: | Seamless |
| Radius: | LR ,SR | Type Of Connection: | Butt Welding |
| Products Name: | Stainless Steel Pipe Elbows | Place Of Origin: | Zhejiang ,china |
| High Light: | ±10% LR stainless steel 90 degree elbow,1.5D stainless steel 90 degree elbow,1.5D stainless steel tubing elbows |
||

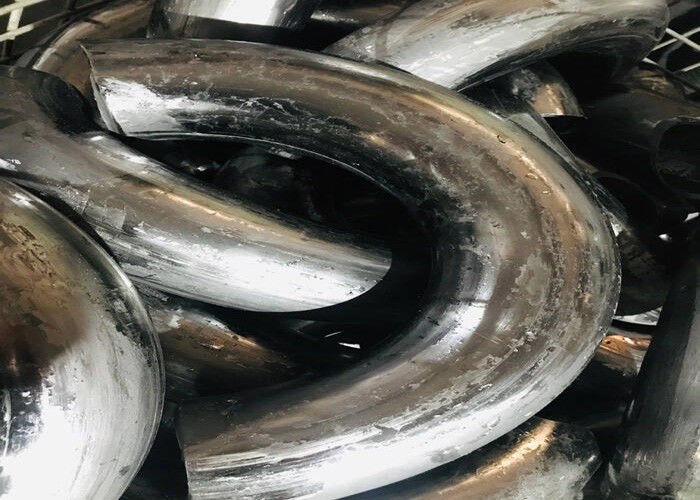

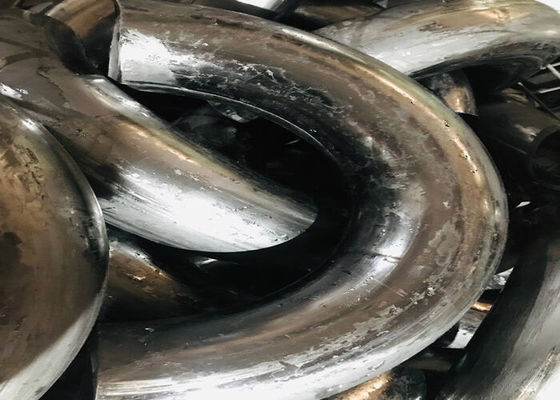

Seamless Pipes Raw Material 90 Degree LR SR 1.5D 1D Stainless Steel Elbow Pipe Fittings
The stainless steel elbow is mainly different from the carbon steel elbow in material, and its chemical composition will prevent the surface of the elbow from rusting and corrosion for a long time.
In the piping system, the elbow is a pipe fitting that changes the direction of the pipe. From an angle, the three most commonly used are 45° and 90°180°. In addition, according to the needs of the project, it also includes other abnormal angles such as 60°.
The elbow is made of cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metal and plastic. Pipeline connection methods include: direct welding (the most common method) flange connection, hot melt connection, electric fusion connection, screw connection, socket connection and so on. According to the production process, it can be divided into welding elbows, stamping elbows, hot pressing elbows, pushing elbows, casting elbows, forging elbows, clamping elbows, etc. Other names: 90° elbow, right angle bend, love and bend, white steel elbow, etc.
products description
| Type | Long Radius 90 Stainless Steel Elbow |
| Size | Seamless 1/2" To 24" Welded To 72"(DN8~DN1000) |
| Wall thickness | Sch5S-Sch160, XS,XXS(1.2mm~34mm) |
| Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
| Material | Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L |
| Alloy Steel:s31803.s32750.S32760. | |
| Temperature: ASTM A420 WPL 1, WPL 3, WPL 6 | |
| Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| Packing | wooden case, pallet or as customers' requirement |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
| Min order | 1 pieces |
| Delivery time | 10 after receipt of advanced payment |
| Certificate | ISO 9001-2008, CE. PED,TS |
| Productivity | 50000 pieces per year |
| Keywords: | ASME/ANSI B16.9 Stainless Steel dn8 ss304 ss316 elbow |
Precautions for the use of stainless steel elbows
1. During installation, the stainless steel elbow can be directly installed on the pipeline according to the connection method, or according to the location of use. Under normal circumstances, it can be installed in any position of the pipeline, but it needs to be sealed to prevent flushing leakage and affect the normal operation of the pipeline.
2. When using ball valves, globe valves and gate valves with stainless steel elbows, they can only be fully opened or closed. They are not allowed for flow regulation to avoid sealing.
3. For long-term storage of stainless steel elbows, periodic inspections should be carried out. The exposed processing surface should be kept clean, the dirt should be removed, and stored neatly in a ventilated and dry place indoors. Stacking and open storage are strictly prohibited. Always keep the stainless steel elbows dry and ventilated, keep the guard ring clean and tidy, and store it according to accurate storage methods.
Tips: When using stainless steel elbows, there are many things to pay attention to. Users need to use them according to specific methods, and use and maintain them according to accurate and fair methods.
GENERAL NOTE: All dimensions are in millimeters.
Application:
In elbow piping systems, elbows are fittings that change the direction of the piping. According to the angle, there are three most commonly used 45 ° and 90 ° 180 °. In addition, according to engineering needs, it also includes other abnormal angles such as 60 °. The materials of the elbows are cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, non-ferrous metals and plastics. The way to connect with the pipe are: direct welding (the most commonly used way) flange connection, hot melt connection, electric fusion connection, threaded connection and socket connection, etc.

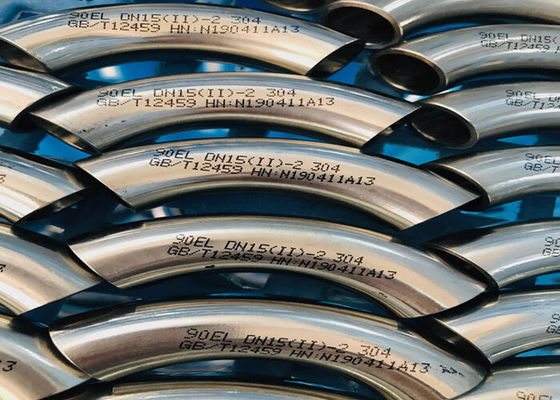

Products Show:
