Product Details:
Payment & Shipping Terms:
|
| Name: | Reducer | Type: | Concentric Or Eccentric |
|---|---|---|---|
| Other Name: | Stainless Steel Pipe Fittings | Material: | Stainless Steel |
| Connection: | Butt Welding | Size: | 1/2"-48" |
| Thickness: | Sch10s-schxxs | Technology: | Seamless And Welded |
| Standard: | ASTM A403 ASME B16.9 | Steel Grade: | Wp304,wp316,wp321,wp2205,wp2507 |
| Highlight: | ASME B16.9 Stainless Steel Reducer,sch10s Stainless Steel Reducer,sch10s stainless steel concentric reducer |
||
butt welding stainless steel reducer pipe fittings concentric or eccentric
"Zheheng steel" is a professional product development, production, sales as one of the stainless steel pipe enterprises, the company has a standard workshop and modern equipment, quality products to provide a strong guarantee.The company is located in the beautiful east coast -- binhai industrial park, only 1.5 kilometers away from wenzhou airport.
Products range:
| Material | Stainless Steel: SS304, SS316, SS304L, SS316L, SS321, SS310 ,1.4401, 1.4403 |
| Duplex Stainless Steel: 9041L 2205, 2507, 254SMO, etc | |
| Type | concentric or eccentric |
| Class | SCH5S, SCH10S, SCH20S, SCH40S, SCH80S, etc |
| Standard | Design: ASME B16.9, MSS-SP-43 |
| Size | 1/2” to 48” |
| Connection | Butt Weld End as per ASME B16.9 |
| Application | For Water, Oil and Gas Industrial |
| Certificate | CE / ISO / SGS |
Dimensions of Reducers
| Nominal Pipe Size(NPS) | large end | small end | End-to-End, H |
Nominal Pipe Size(NPS) | large end | small end | End-to-End, H |
| 3/4"X1/2" | 26.7 | 213 | 38 | 5X4 | 141.3 | 114.3 | 127 |
| 3/4"X3/8" | 26.7 | 17.3 | 38 | 5 x 3-1/2" | 141.3 | 101.6 | 127 |
| 1"X3/4" | 33.4 | 26.7 | 51 | 5 x 3 | 141.3 | 88.9 | 127 |
| 1"X1/2" | 33.4 | 21.3 | 51 | 5 x 2-1/2" | 141.3 | 73 | 127 |
| 1-1/4"X 1" | 42.2 | 33.4 | 51 | 5 x 2 | 141.3 | 60.3 | 127 |
| 1-1/4"X 3/4" | 42.2 | 26.7 | 51 | 6X5 | 168.3 | 141.3 | 140 |
| 1-1/4"X 1/2" | 42.2 | 21.3 | 51 | 6x4 | 168.3 | 114.3 | 140 |
| 1-1/2"X 1-1/4" | 48.3 | 42.2 | 64 | 6 x | 168.3 | 101.6 | 140 |
| 1-1/2"X 1" | 48.3 | 33.4 | 64 | 6X3 | 168.3 | 88.9 | 140 |
| 1-1/2"X 3/4" | 48.3 | 26.7 | 64 | 6 x 2-1/2" | 168.3 | 73 | 140 |
| 1-1/2"X 1/2" | 48.3 | 21.3 | 64 | 8x6 | 219.1 | 168.3 | 152 |
| 2"X 1-1/2" | 60.3 | 48.3 | 76 | 8X5 | 219.1 | 141.3 | 152 |
| 2"X 1-1/4" | 60.3 | 42.2 | 76 | 8X4 | 219.1 | 114.3 | 152 |
| 2"X 1" | 60.3 | 33.4 | 76 | 8 x 3-1/2" | 219.1 | 101.6 | 152 |
| 2"X 3/4" | 60.3 | 26.7 | 76 | 10 x 8 . | 273 | 219.1 | 178 |
| 2-1/2"X 2" | 73 | 60.3 | 89 | 10 x 6 | 273 | 168.3 | 178 |
| 2-1/2"X 1-1/2" | 73 | 48.3 | 89 | 10 x 5 | 273 | 141.3 | 178 |
| 2-1/2"X 1-1/4" | 73 | 42.2 | 89 | 10 x 4 | 273 | 114.3 | 178 |
| 2-1/2"X 1" | 73 | 33.4 | 89 | 12 x 10 | 323.8 | 273 | 203 |
| 3"X 2-1/2" | 88.9 | 73 | 89 | 12 x 8 | 323.8 | 219.1 | 203 |
| 3"X 2" | 88.9 | 60.3 | 89 | 12 x 6 | 323.8 | 168.3 | 203 |
| 3"X 1-1/2" | 88.9 | 48.3 | 89 | 12 x 5 | 323.8 | 141.3 | 203 |
| 3"X 1-1/2" | 88.9 | 42.2 | 89 | 14 X 12 | 355.6 | 323.8 | 330 |
| 3-1/2"X 3" | 101.6 | 88.9 . | 102 | 14 X 10 | 355.6 | 273 | 330 |
| 3-1/2"X 2-1/2" | 101.6 | 73 | 102 | 14 X 8 | 355.6 | 219.1 | 330 |
| 3-1/2"X 2" | 101.6 | 60.3 | 102 | 14 X 6 | 355.6 | 168.3 | 330 |
| 3-1/2"X 1-1/2" | 101.6 | 48.3 | 102 | 16 x 14 | 406.4 | 355.6 | 356 |
| 3-1/2"X 1-1/4" | 101.6 | 42.2 | 102 | 16 x 12 | 406.4 | 323.8 | 356 |
| 4"X 3-1/2" | 114.3 | 101.6 | 102 | 16 x 10 | 406.4 | 273 | 356 |
| 4"X 3" | 1143 | 88.9 | 102 | 16 x 8 | 406.4 | 219.1 | 356 |
| 4"X 2-1/2" | 114.3 | 73 | 102 | 18 x 16 | 457 | 406.4 | 381 |
| 4"X 2" | 114.3 | 60.3 | 102 | 18 x 14' | 457 | 355.6 | 381 |
| 4"X 1-1/2" | 114.3 | 48.3 | 102 | 18 x 12 | 457 | 323.8 | 381 |

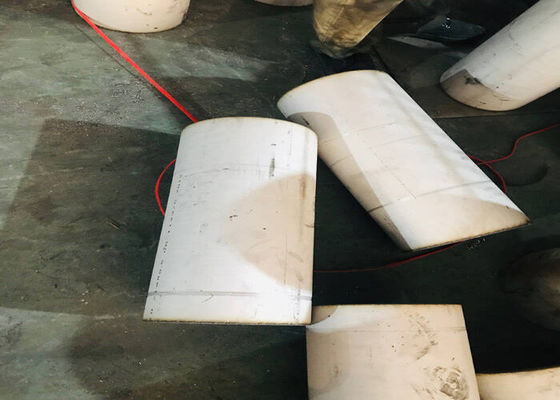

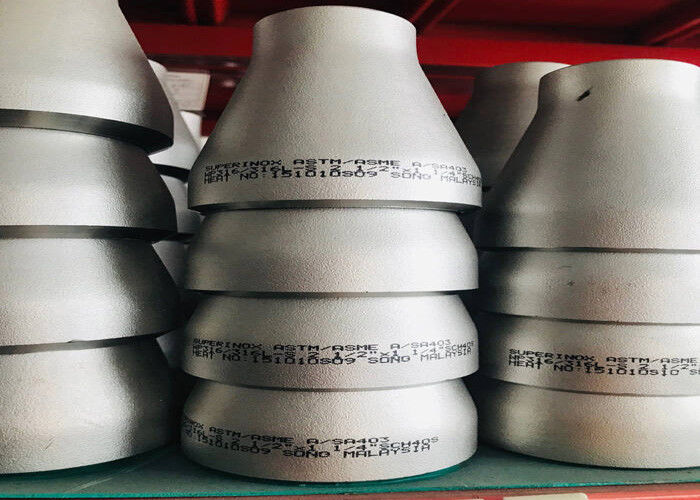

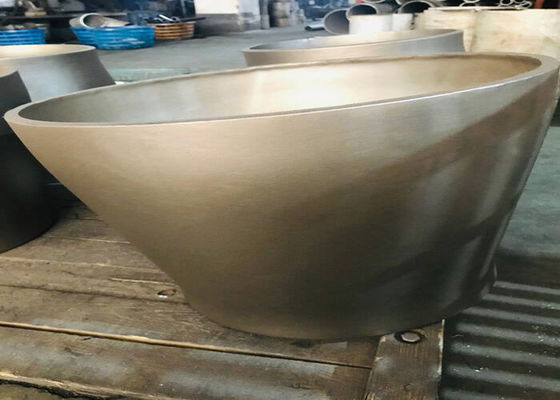

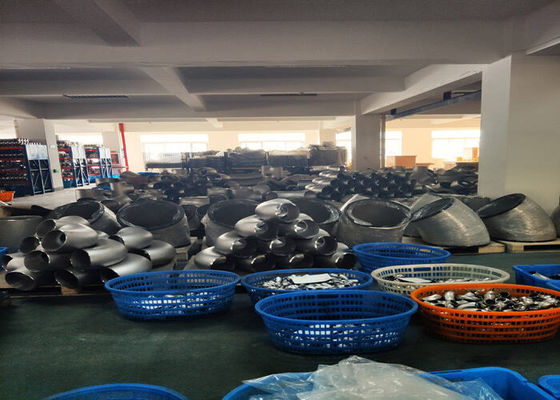

products show:
